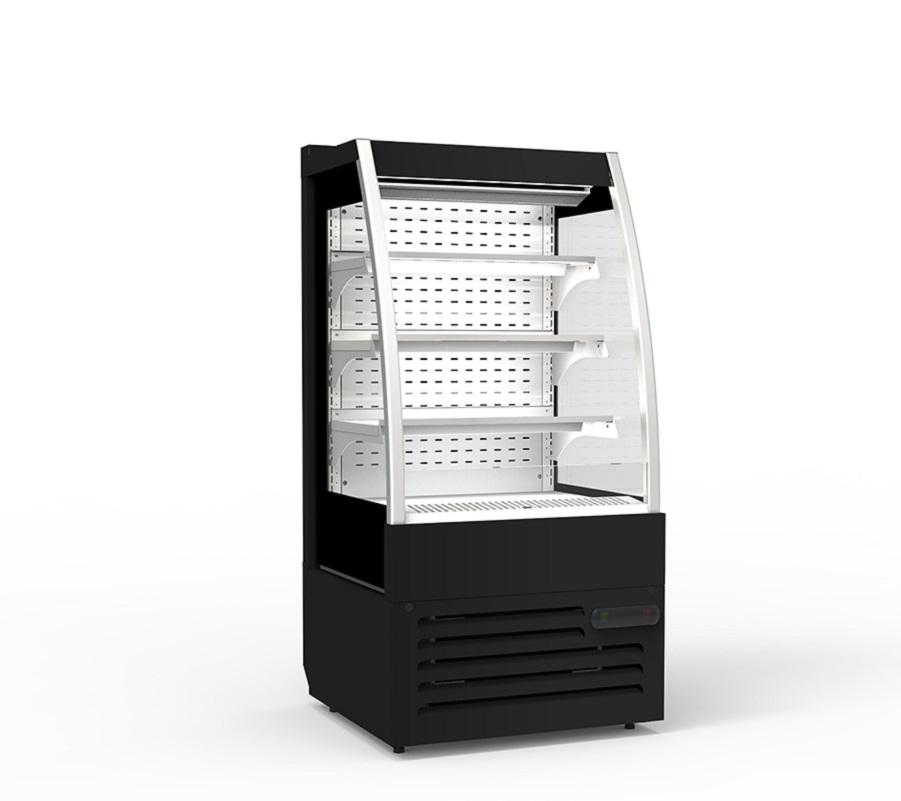

Vertical Open Front Refrigerated Display Cooler
Vertical Open Front Refrigerated Display CoolerMulti Layer Shelves · Air Curtain Cooling · Danfoss Compressor · R134a · 4℃ to 10℃
The FM series vertical open front air curtain display cooler gives customers a full view of fresh food, cakes, pastries, dairy and beverages from both sides. Its back-blown air curtain circulates cold air evenly across four adjustable shelves, while the Danfoss compressor and all-copper cooling system hold a steady 4~10℃. Built for supermarkets, convenience stores, bakeries and fresh food counters.

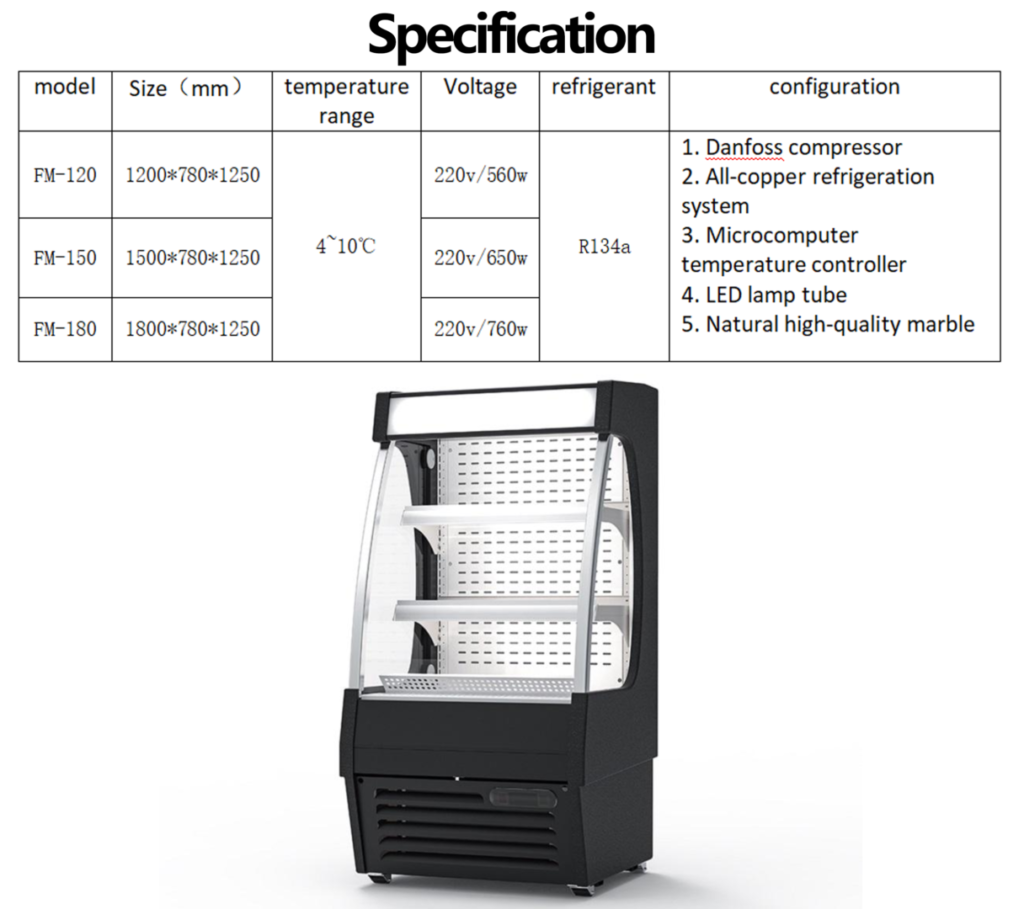

Product Specification
Full model specifications for the FM series vertical open front display cooler.
| Item | Content |
| Product Name | Vertical Open Front Air Curtain Refrigerated Display Showcase |
| Model | FM-120 / FM-150 / FM-180 |
| Brand | CPVKRY |
| Dimension | FM-120: 1200*780*1250mm；FM-150: 1500*780*1250mm；FM-180: 1800*780*1250mm |
| Cabinet Material | Durable metal frame, anti-rust inner ventilated panel, curved front glass |
| Refrigerant | R134a |
| Compressor | Danfoss compressor, long time continuous operation |
| Cooling System | All-copper refrigeration system, back-blown air curtain, fan cooling, uniform air circulation |
| Working Temp | Stable, 4℃ to 10℃ for cake, pastry and fresh food preservation |
| Voltage / Power | 220V / 560W (FM-120), 650W (FM-150), 760W (FM-180) |
| Shelves | 4 layers, multi-layer adjustable metal display shelves |
| Temperature Control | Microcomputer precise digital temperature controller |
| Lighting | Built-in LED lamp tube |
| Defrost | Auto defrost |
| Base | Natural high-quality marble |
| Mobility | Universal moving casters |
| Package Size | 121*79*127 cm |
| Gross Weight | 220 kg |
| Origin | Guangdong, China |

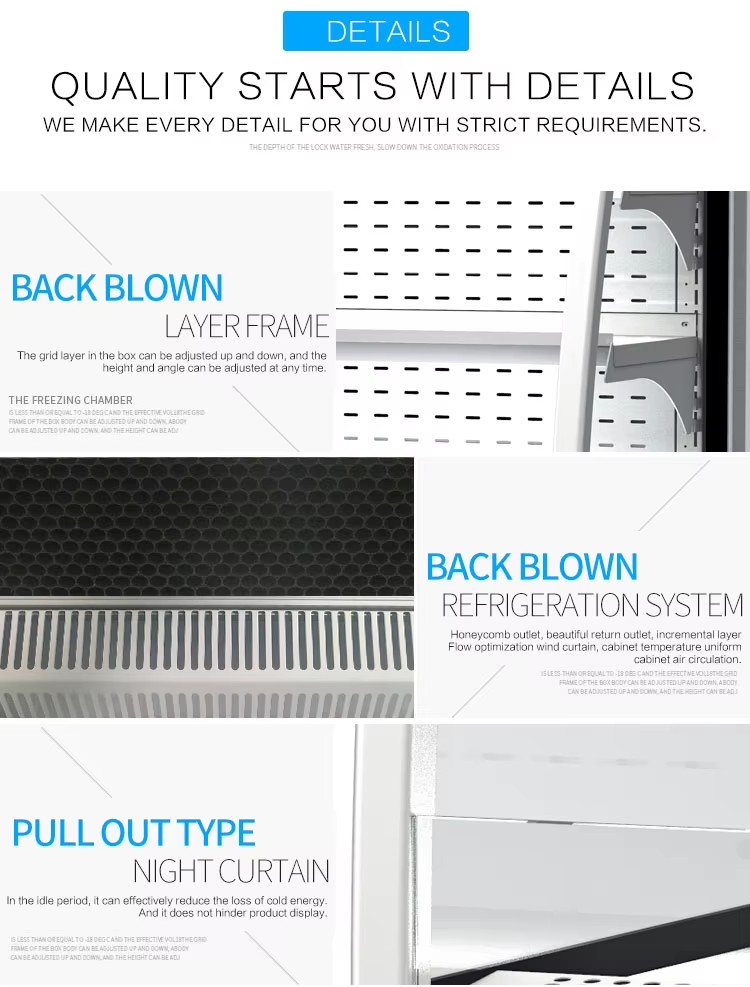

Product Details
1. Back-Blown Air Curtain, Even Cooling
The back-blown refrigeration system uses a honeycomb air outlet and return outlet to push an even air curtain across the cabinet. Layered air flow optimization keeps temperature uniform on every shelf, so food stays fresh from top to bottom.
2. Adjustable Multi-Layer Shelves
Four metal display shelves can be moved up and down, with height and angle adjusted at any time. The perforated back panel lets cold air pass through each layer, giving you flexible merchandising space for cakes, pastries, dairy and fresh products.
3. Danfoss Compressor & All-Copper Cooling
A Danfoss compressor runs continuously for long hours. The all-copper refrigeration system uses the environmentally friendly R134a refrigerant. Microcomputer digital control holds 4~10℃ steadily, with auto defrost built in.
4. Pull-Out Night Curtain
At closing time, pull out the night curtain to reduce cold energy loss and keep the cabinet sealed overnight. During opening hours it retracts completely, so it never blocks the customer’s view of your products.
5. Curved Front Glass, LED Light, Marble Base
The curved front glass gives a wide, unobstructed view from the side. Built-in LED tubes light up each shelf. The natural high-quality marble base adds a premium look, and universal moving casters let you roll the cabinet into position.
