Commercial Stainless Steel Cooking Oil Filter Trolley — Mobile Oil Filtration for Hotel & Restaurant
Food-Grade SUS304 Stainless Steel · 550W · 220/380V · 35–58L Capacity Range · 4 Swivel Casters · Separated Filter Chamber & Storage Tank · Anti-Leak Sealed Design
CPVKRY cooking oil filter trolley is a mobile stainless steel cart that pumps used frying oil through a perforated filter basket and back into a sealed storage tank — extending oil life and keeping fryer stations clean. Built from food-grade SUS304 with four swivel casters, a flexible suction wand and a drain valve, it moves between fryer lines in fried chicken shops, fast food kitchens and hotel restaurants.
Product Specification
Commercial stainless steel cooking oil filter trolley — SUS304, 550W, 220/380V, 35–58L, 4 universal casters, separated filter chamber and storage tank, anti-leak sealed tank, one-year warranty.
| Item | Content |
| Product Type | Commercial stainless steel cooking oil filter trolley |
| Brand | CPVKRY |
| Material Grade | Food-grade SUS304 stainless steel |
| Dimensions (L×W×H) | 910 × 380 × 505 mm |
| Weight | 35 kg |
| Power | 550 W |
| Voltage | 220V / 380V, single phase |
| Flow Rate | 25 L/min, 32 L/min, 50 L/min |
| Pressure | 0.4 MPa, 0.5 MPa, 0.6 MPa |
| Capacity Range | 35 L to 58 L; 8 gal (30.28 L), 16 gal (60.57 L), 35, 45 |
| Oil Type / Raw Material | Edible oil; waste oil / used oil |
| Core Accessory | Long stainless steel suction tube for oil extraction |
| Filtration Design | Separated filter chamber and large storage tank |
| Mobility | 4 universal casters for easy movement |
| Safety Feature | Anti-leak sealed tank design |
| Operation Mode | Manual suction filtration, easy maintenance |
| Solution Type | One-stop commercial kitchen solution |
| Warranty | 1 year |
| Application | Fried chicken shops, fast food, hotel kitchen |
| Package Size | 93 × 40 × 52 cm, G.W 40 kg |
Product Details

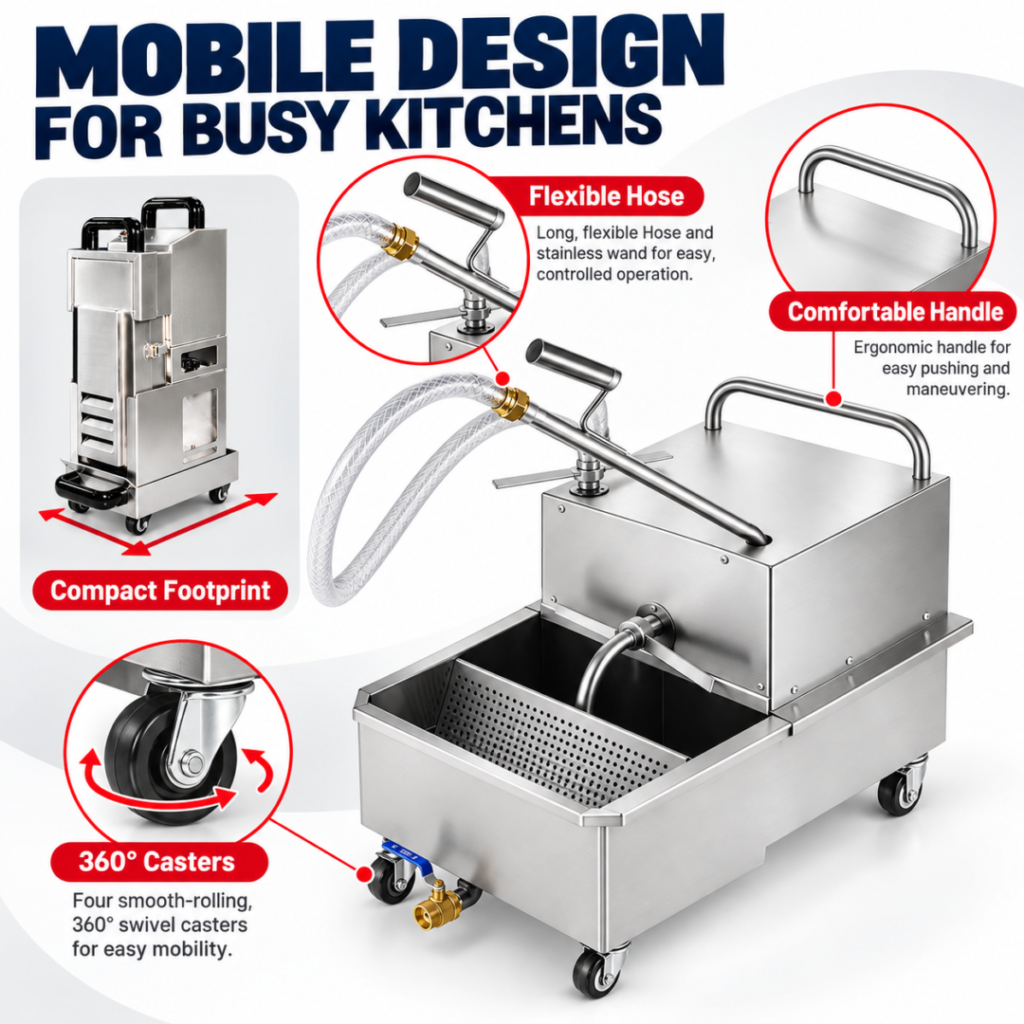

1. Mobile Design for Busy Kitchens
Four 360° swivel casters, an ergonomic push handle and a compact footprint — the trolley rolls from fryer to storage between service rushes.

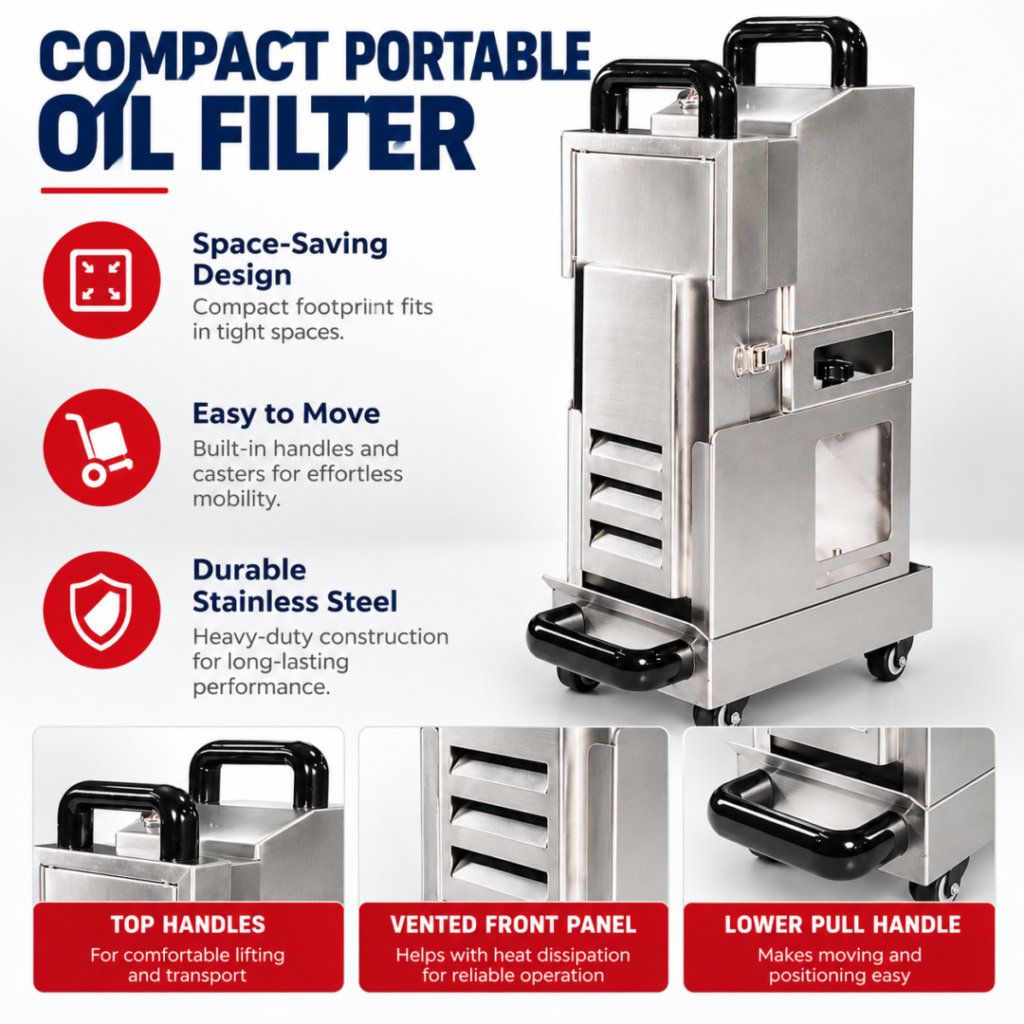

2. Compact Portable Upright Filter
Space-saving upright housing with top carry handles, vented front panel for heat dissipation and a lower pull handle for positioning.

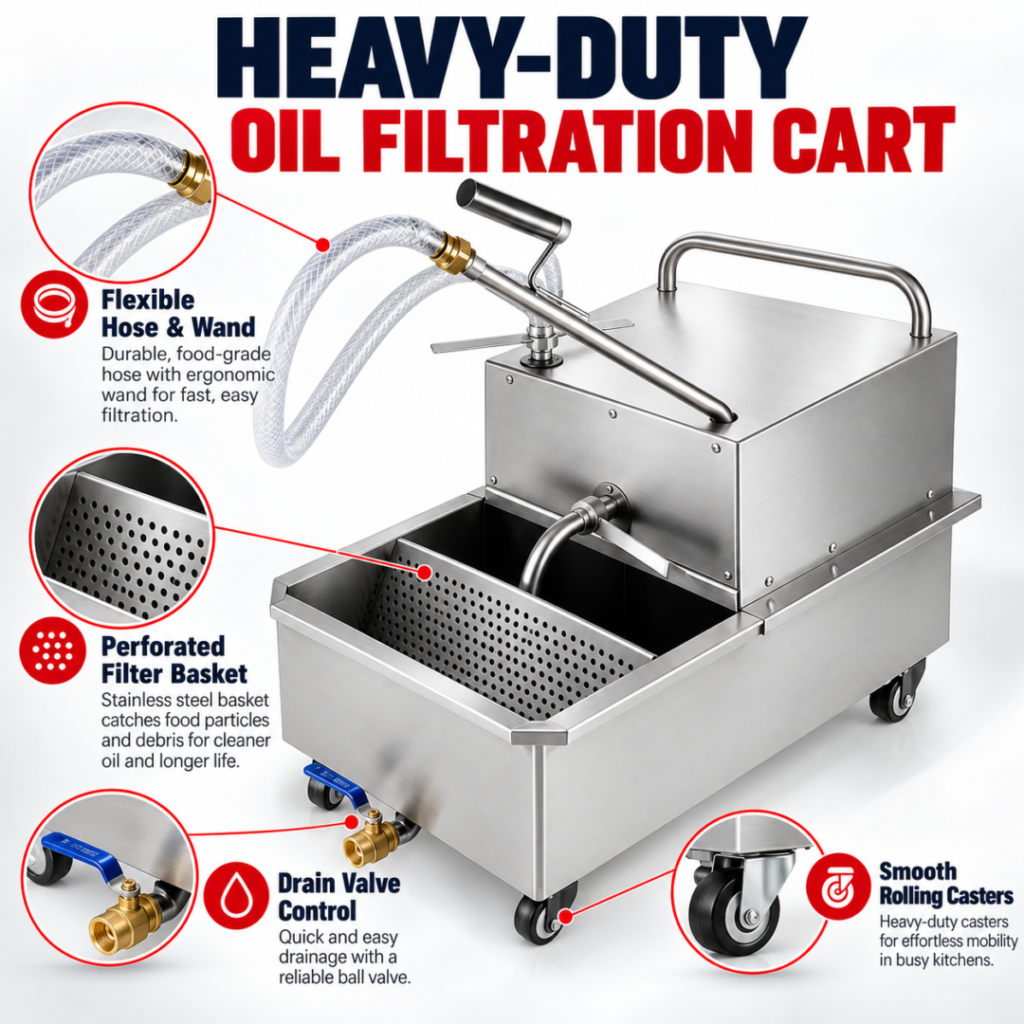

3. Heavy-Duty Oil Filtration Cart
Flexible food-grade hose with stainless wand, perforated filter basket that catches food particles, and a ball-valve drain for quick, controlled oil release.

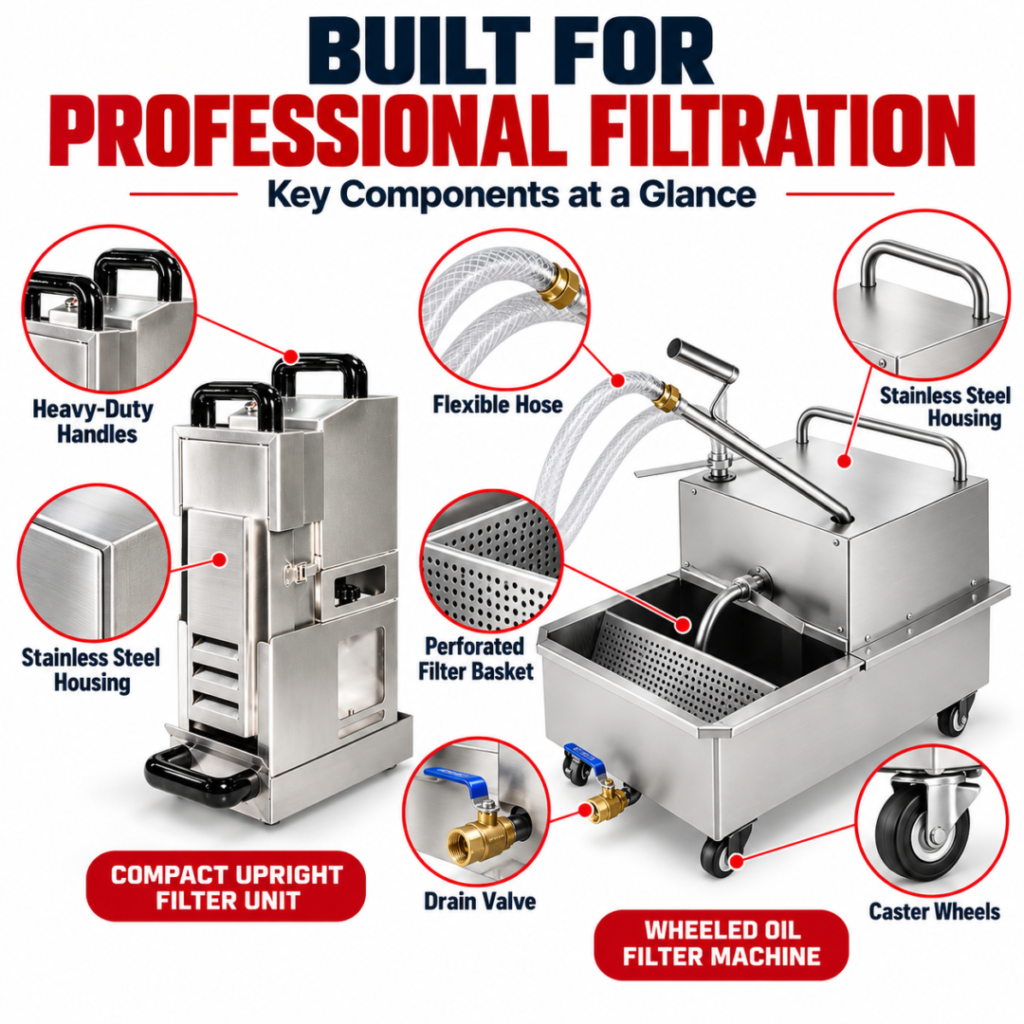

4. Key Components at a Glance
Heavy-duty handles, stainless housing, flexible hose, perforated filter basket, drain valve and caster wheels — everything visible and serviceable.

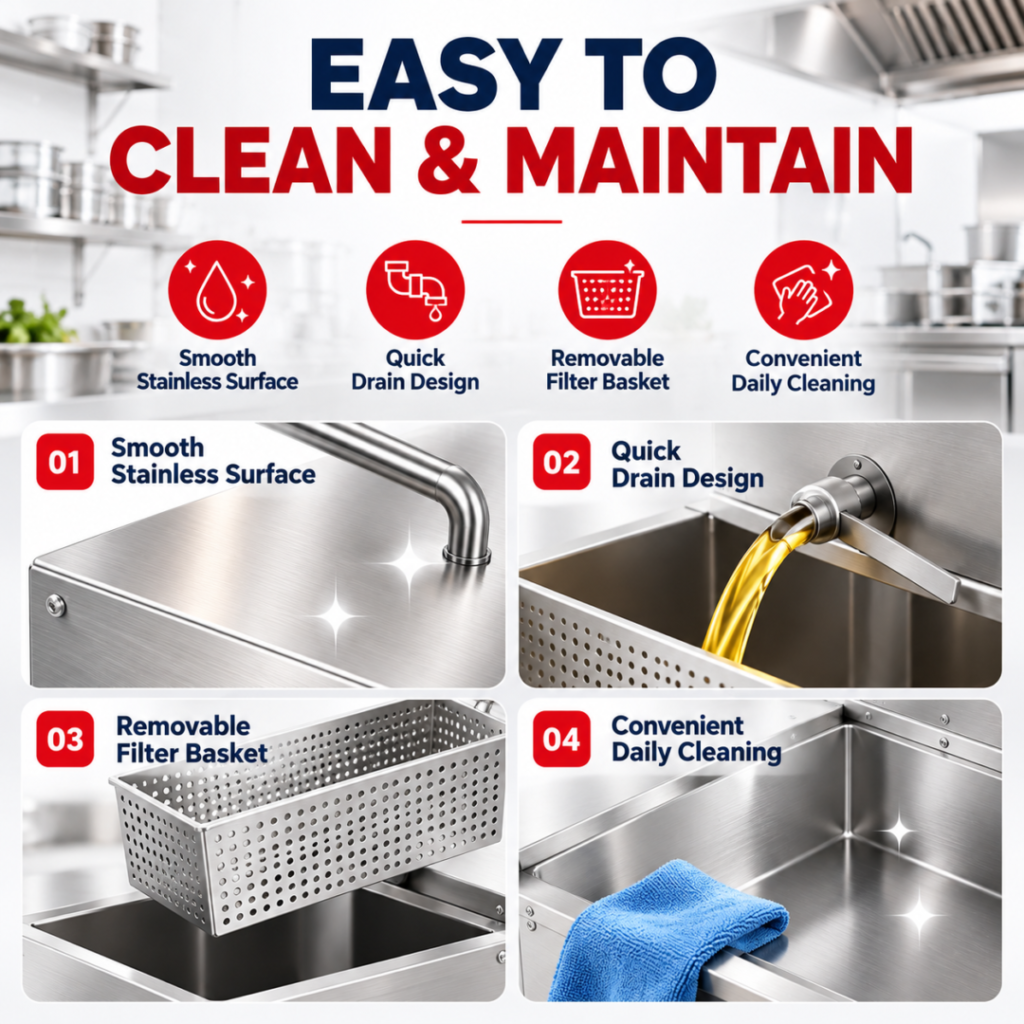

5. Easy to Clean & Maintain
Smooth stainless surfaces, quick drain design, removable filter basket and wipe-down tank interior — daily cleaning takes minutes.
6. Ideal for Commercial Kitchens
Restaurants, fast food kitchens, cafeterias and food service operations — filter oil in place and extend fryer oil life across the whole line.
